SB4 PHOENIX SOLAR-POWERED DRONE

Choose the highest flight endurance in the world

The SB4 is a fixed wing UAV providing actionable geospatial data collected over extensive areas. It is designed to cover a wide range of large scale missions : precision mapping, photogrammetry, surveying, surveillance, inspection and remote sensing. In just a few clicks, the aerial images are transformed in valuable insights such as georeferenced orthomosaics and 3D models. This insightful knowledge enables managers to make quick and precise data-driven decisions.

$28,500.00



MULTIPLE PAYLOADS

8H AUTONOMY

LIGHTWEIGHT

SILENT



Ideal for large scale missions

With an unprecedented endurance, the SB4 Phoenix is the ideal tool for large scale inspections. This UAV is capable of flying an entire day to reach the most remote places to get accurate data and help you drive your business.


Easy to Deploy and to Transport

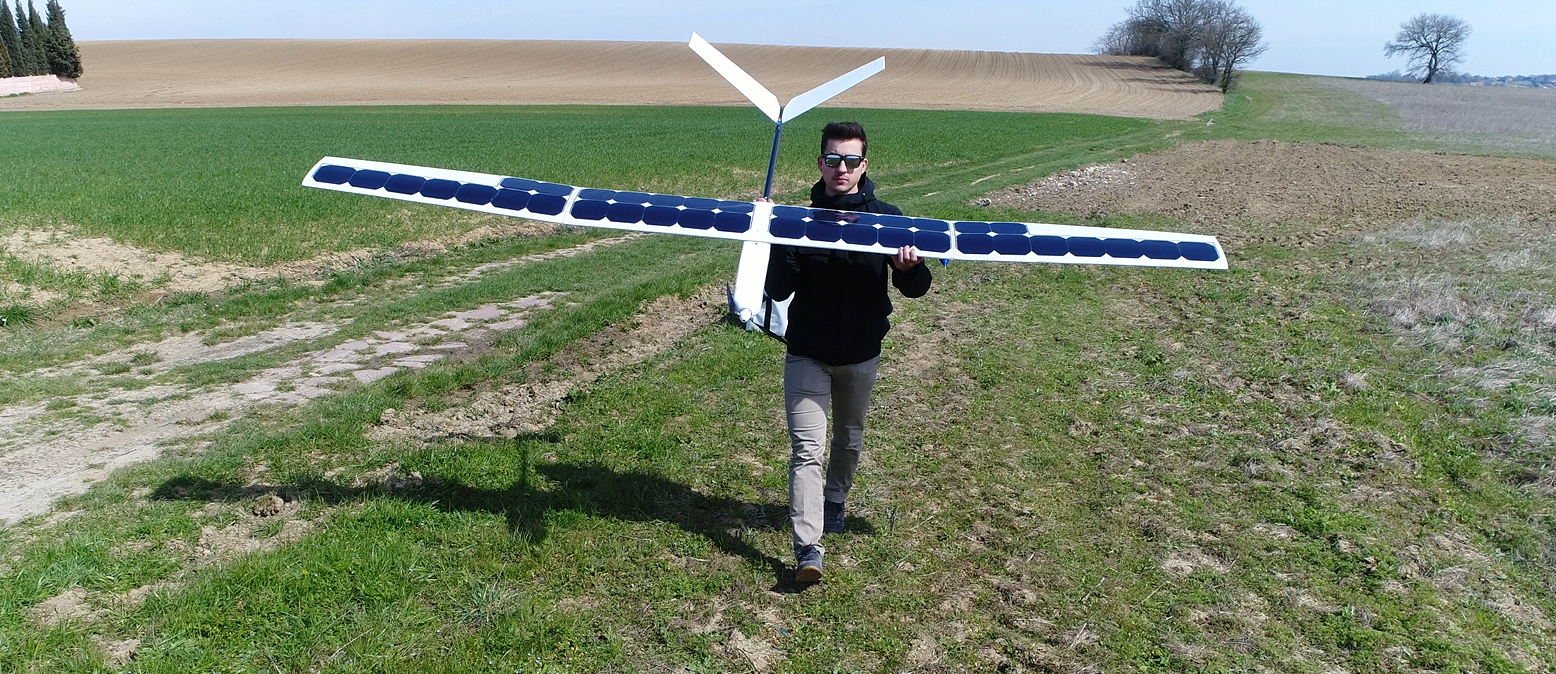

With a weight of 3.5kg, the SB4 Phoenix is extremely simple to deploy and to transport. It’s the only drone capable of being so enduring and lightweight at the same time. Disassemble its 3 parts wing, pack the whole system in our custom transport bag, and you’ll be able to take it anywhere !


Unrivalled 8hrs Endurance

Sunbirds is the leader in solar powered drones. Thanks to its unrivalled endurance of 8hrs, the SB4 performs ultra long range missions with a flight range of up to 400km. Pioneer in this cutting edge technology, Sunbirds has set new endurance standards. This unique CleanTech drone will help you save time and money.

canva-photo-editor (1).png

Fully Autonomous

The SB4 is a fully autonomous drone. Simply switch to automatic mode for take-off, and the solar-powered plane will execute its mission totally autonomously. It is so lightweight that you can launch it with your hand !

During the flight, the solar power is managed without the need of intervention. If the weather is cloudy, the UAV will use the solar cells and the battery at the same time. But in good sunshine conditions, you will also be able to recharge the battery in-flight !

Technical Specifications

Weight ……………………………………….3.5 kg - 7.7 lbs
Wingspan
………………………………………320cm - 126 in
Lenght
………………………………………162 cm - 63.8 in
Flight mode
………………………………………Assisted / Autonomous
Propulsion
………………………………………Brushless DC motor & Folding propellers
Battery Pack
………………………………………LiPo 2200mAh 6S 22.2V
Launch
………………………………………By hand
Connectivity
………………………………………433/915 Mhz direct link

Flight time ………………………………………All day long*
Flying range
………………………………………Up to 290 km
Radio link range
………………………………………Up to 30 km - 18.6 mi
Cruise speed
………………………………………40km/h - 11.1m/s
Wind resistance
………………………………………40km/h - 11.1 m/s
Default payload
………………………………………Sony RX100 II 20Mpxl Camera
GSD
.……………………………………..Down to 1 cm - 0.4 in per pixel
Flight coverage
……………………………………..2000ha 150m AGL - 3.8 cm GSD - 60% overlap

*Depending on sunlight conditions
